Rubber ball mill lining board

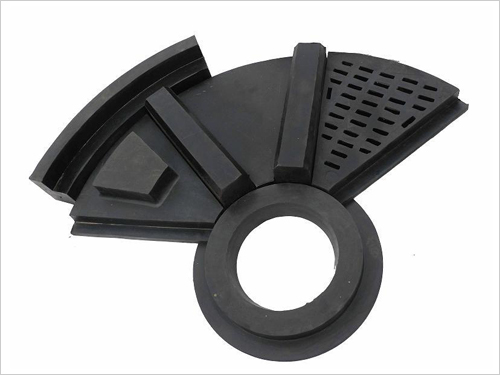

Ball mill with rubber lining board is used at both ends of the ball mill, short for cylinder rubber lining board, also known as rubber lining, rubber lining. A complete set of rubber lining board by the end of the ball mill lining board (grille type checkered plate), the article, the center ring type (grille guard board for the center), packing, barrel promotion article (also called layering), cylinder liner, manhole door, fasteners and other components. Ball mill lining board is to protect the cylinder and the cylinder direct impact and friction from grinding medium and material, also can use a different form of lining board to adjust the grinding body motion, to increase grinding medium for material crushing effect, helps to improve the efficiency of the grinding mill, increase production, reduce consumption of metal. Cylinder liner in addition to protect the body, also have an impact on the movement of grinding medium, in order to adapt to different working condition (grinding and fine grinding), the shape of the lining material is also different. When is given priority to with crushing requirements recommended lining surface grinding body ability is stronger, the lining at the same time should have good shock resistance, when is given priority to with fine grinding, lining board is relatively small, the recommended grinding body function is weak, the impact is small, and the grinding effect is stronger, lining board has good wear resistance. The composition of ball mill lining board: Rubber ball mill lining board is mainly composed of cylinder and the end of two parts. Cylinder parts: Cylinder layering, cylinder liner, T bolt The end: Side plate/grating, and layering, T bolt The main advantage of the rubber ball mill lining board: 1, low-power, rubber physical density is one 6 of the manganese steel, lower the quality of cylinder, which reduces the motor load, save electricity, also is to reduce the cost; 2, high wear resistance and impact resistance Rubber lining is made of special formula, after high-pressure vulcanization processing, wear-resisting performance greatly improve the service life is fierce steel lining plate of about 1.5 to 2 times, its own unique elastic rubber buffer greatly reduces the intense impact; 3, low noise Steel and rubber collision itself to reduce the noise, and the rubber itself has sound insulation effect, to a certain extent stimulated the enthusiasm of employees, indirectly, improve the enterprise production efficiency; 4, easy to install Rubber lining quality is light, do not need special tools installation, more convenient greatly reduces the downtime, improved the operational efficiency of enterprises 5, corrosion resistant Manganese steel with acid, alkali, salt can produce replacement chemical reactions, such as accelerated wear plate; And the rubber lining board itself through special process recipes, with corrosion resistant, so as to prolong the service life of the lining board used. 6, saving steel ball The practical work, compared with manganese steel lining plate, annual output of 100000 tons refinery, rubber liner can save 150000 tons of steel ball.
